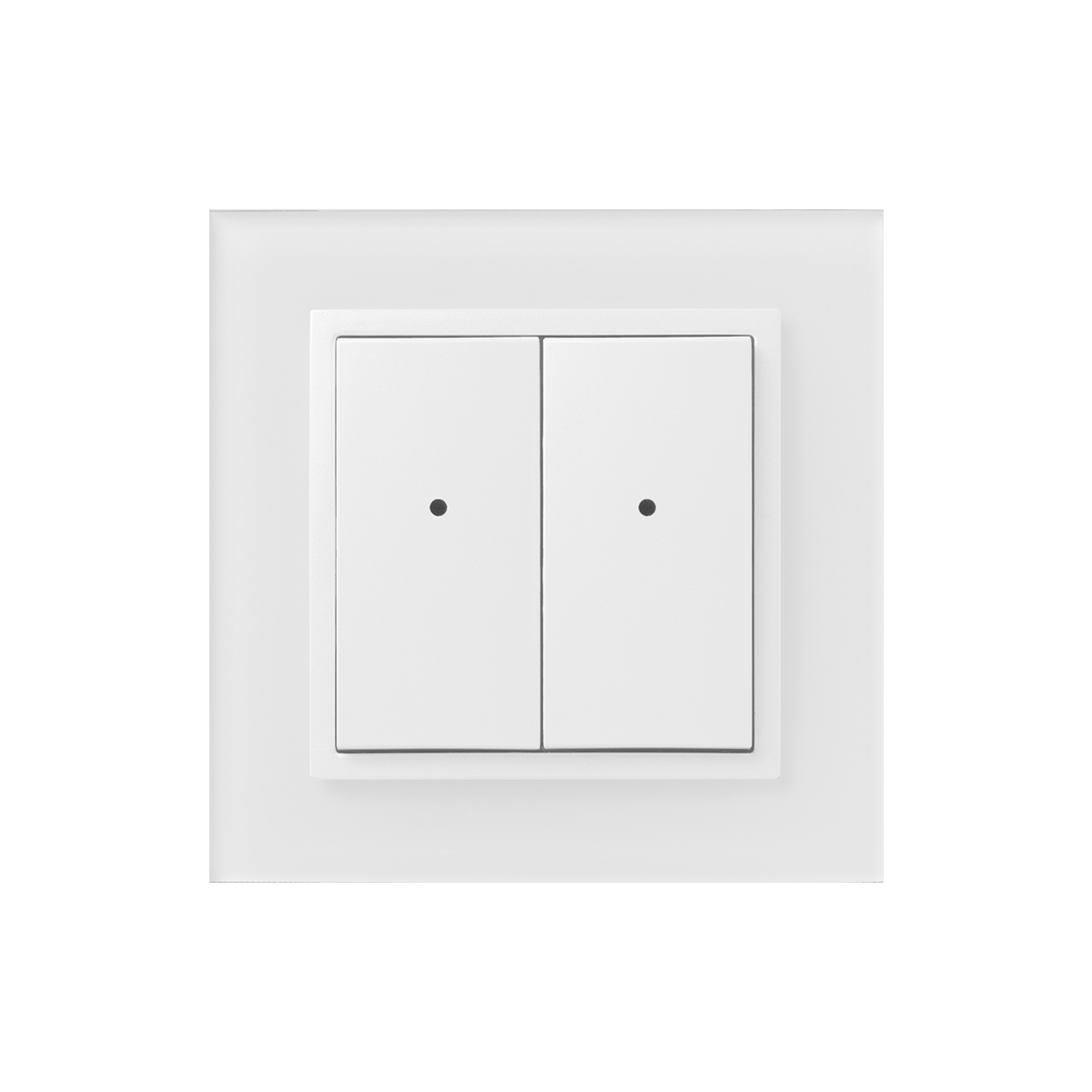

WSB3-40, WSB3-40H
Wall switch button, 4 buttons
Last updated
Wall switch button, 4 buttons
Last updated
An overview of the product design and usage. Also contains circuit diagrams, terminal details, etc.,
Upstroke Control: The WSB3-40 and WSB3-40H controllers feature upstroke control, offering elegant and pleasant control with a built-in micro-switch with low upstroke.
Number of Channels: Both controllers are supplied with 4 channels, providing control over multiple appliances or functions.
Indication LEDs: Two-colored indication LEDs are located in each controller to signal the status of controlled appliances or the status of any sensor or actuator in the system.
Compatibility: Wall buttons in the WSB3 series are compatible with both types of frames, LOGUS90 (85.6x85.6 or 94x94 mm), allowing for combination with double and triple frames and classic products of the series.
Integrated Sensors and Inputs: Each controller is equipped with a temperature sensor and two analog/digital inputs (AIN/DIN), allowing connection to two potential less contacts or one external temperature sensor TC/TZ for various applications such as floor temperature measurement.
Flexibility and Multifunctionality: Compared to standard wall buttons, the WSB3-40 and WSB3-40H are more flexible and multifunctional. They support functions such as controlling appliances by short and long pushes of the button, dimming, shutter control, and scenes.
Time controlled features: Each button can control any appliance in the system and can use a variety of centralized or time-controlled features. Accordingly, the customer can choose the simplicity/complexity of the operation. The big advantage is the possibility to change the method of control by only making software modifications without physical interventions into the structure of the building
Customizable Functional Modes: Each button (fold) can have different functional modes besides lighting control, including:
a) Classic wall-switch - upper button ON, bottom button OFF.
b) Button controller (impulse relay) - first press ON, second press OFF.
c) Dimmer - short press for ON/OFF
d) Time switch- ON after press, automatically OFF after set time.
e) Setting light scenes- e.g., for watching TV:
shutters down
main light 30% intensity
wall-lamps 50% intensity
Mounting: The WSB3 controllers in LOGUS90 design are designed for mounting into an installation box, ensuring easy installation and integration into building structures.
The chart illustrates the compatibility between wall switch button and various central units, firmware versions, and integration options.
SL No | Support Central units | Support FW | Support in MQTT | Support in HASS |
---|---|---|---|---|
1 | CU3-01M | 02.83.00 | NA | NA |
2 | CU3-02M | 02.83.00 | NA | NA |
3 | CU3-07M | 04.00.00 | Yes | Yes |
4 | CU3-08M | 04.00.00 | Yes | Yes |
6 | CU3-09M | Preparation | Preparation | Preparation |
7 | CU3-10M | Preparation | Preparation | Preparation |
Introduction
iNELS Design Manager, or IDM3, is for programming iNELS units. This software serves as the platform for configuring device parameters, defining functions, and executing the programming required for iNELS units.
Device parameters, such as sensor range and thresholds, backlights, and operational modes, can be easily adjusted within the IDM3.
The process of programming in IDM3 typically involves defining functions and establishing logical connections between different devices. This allows for the creation of automation scenarios and the implementation of intelligent control strategies.
Starting up
Select the "blue control icon" as shown in Fig 1 > Clicking on the option "New project from default template“ allows you to create a new project from a predefined template.
Select the "Device manager" (Fig 1)> Add "New unit "> Select the central unit > Add "New unit">Select the "Internal-Master/ BUS"> Add "New unit "> Add the devices> Click on the devices to see the "Parameters".
Parameters:
Parameters in the iNELS devices refer to the measurable factors or characteristics that define the behavior or performance of the device. These could include electrical properties, physical dimensions, environmental conditions, and various other specifications depending on the type of device.
These are settings specific to individual devices within your automation system.The specific parameters of the WSB3-40, WSB3-40H in the iDM as shown in Fig.2

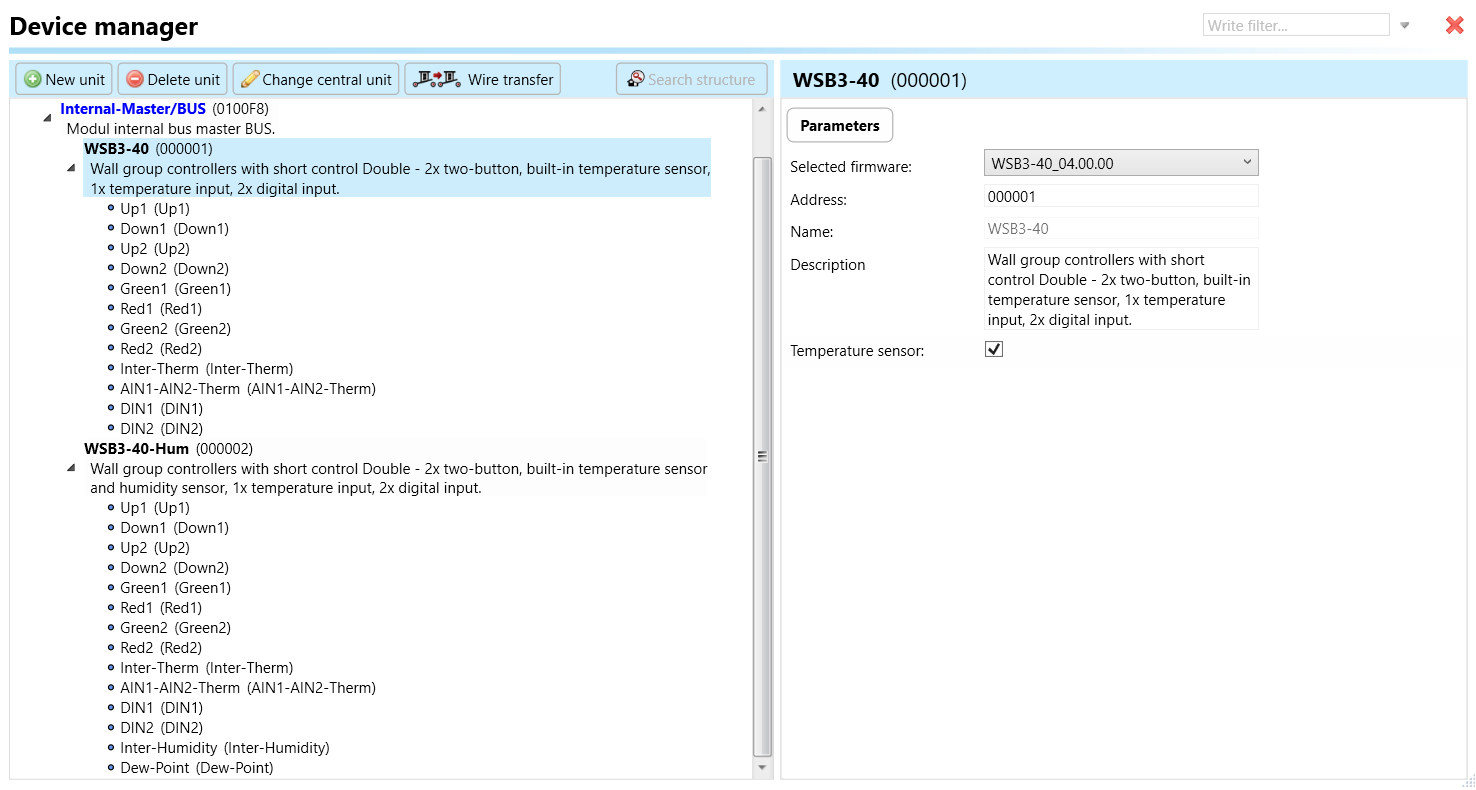

Clicking on the WSB3-40, WSB3-40H (Fig.2), will navigate to the selected firmware, address, name, and description, along with other parameters as described below:
Temperature sensor: The temperature sensor is a built-in component of the WSB3-20H controller. It facilitates temperature measurement and monitoring within the immediate vicinity of the wall controller.
WSB3-40 parameters:

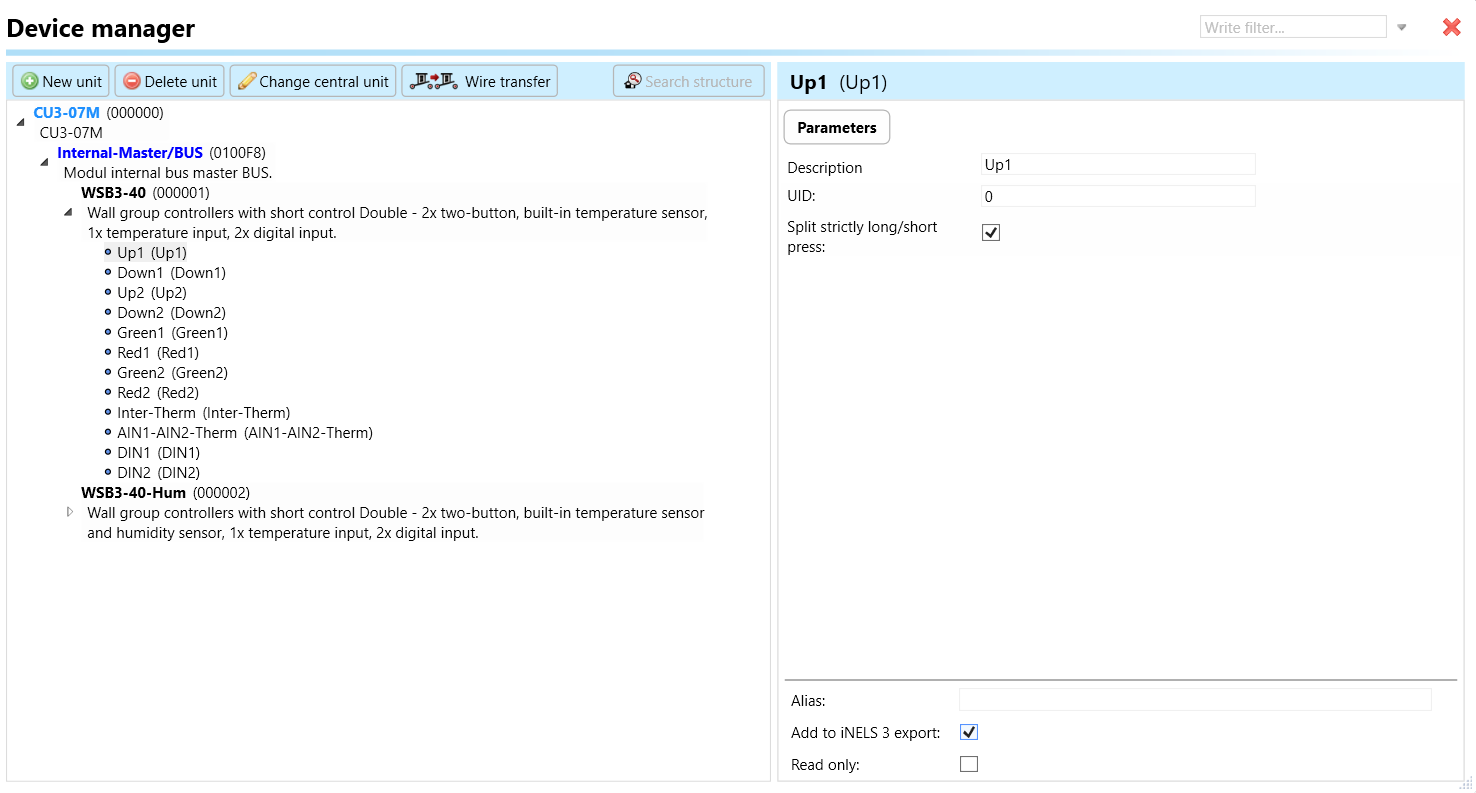

Up 1, 2:
The "Up" parameter refers to the upward button or action on the wall controller. The "Up" button may be used for various purposes depending on the configuration or programming of the wall controller.
The set of actions in SW “ short press, short release, long press, long release, and permanent action can be used with various functions.
Down 1, 2:
Similarly, "Down 1" and "Down 2" refer to the actions or functions associated with the downstroke movement of the controller's buttons. These parameters specify the behavior or actions initiated when the button is pressed downward. Each button have one downward function
The set of actions in SW “ short press, short release, long press, long release, and permanent action can be used with various functions.
Green 1, 2:
"Green 1" and "Green 2" refer to the status of LEDs associated with the controller's buttons. These parameters specify the behavior or status indicated by the green LEDs located on the controller. Two buttons are associated with two green LED, denoted by "Green 1" and "Green 2".
Red 1, 2:
Similarly, "Red 1" and "Red 2" likely refer to the status or indication LEDs associated with the controller's buttons but in red color. These parameters specify the behavior or status indicated by the red LEDs located on the controller.
Inter-Therm:
The "Inter-Therm" parameter refers to the inter-thermal functionality or capability of the wall controller, possibly related to temperature monitoring or control.
a) Offset Temperature: Offset temperature refers to a user-configurable adjustment applied to the temperature readings from the connected sensor. It allows users to compensate for any systematic errors or inaccuracies in the temperature measurements.
b) Minimal Temperature: This parameter defines the minimum acceptable temperature value that the device can measure or handle. It sets a lower limit to ensure that temperature readings below this threshold are considered valid and within the device's operating range.
c) Maximal Temperature: Similar to minimal temperature, the maximal temperature parameter sets the maximum acceptable temperature value that the device can measure or handle. It establishes an upper limit to ensure that temperature readings above this threshold are considered valid and within the device's operating range.
d) Average Time: Average time refers to the duration over which the temperature sensor integrates or averages multiple readings to calculate a representative value. This parameter helps to smooth out fluctuations in temperature levels.
AIN1-AIN2-Therm:
AIN1-AIN2-Therm refers to the analog/digital inputs specifically designed for connecting temperature sensors (e.g., TC/TZ sensors) to the wall controller.
a) Sensor type: There are two types of sensor namely, TC and TZ.
b) Offset Temperature: Offset temperature refers to a user-configurable adjustment applied to the temperature readings from the connected sensor. It allows users to compensate for any systematic errors or inaccuracies in the temperature measurements.
c) Minimal Temperature: This parameter defines the minimum acceptable temperature value that the device can measure or handle. It sets a lower limit to ensure that temperature readings below this threshold are considered valid and within the device's operating range.
d) Maximal Temperature: Similar to minimal temperature, the maximal temperature parameter sets the maximum acceptable temperature value that the device can measure or handle. It establishes an upper limit to ensure that temperature readings above this threshold are considered valid and within the device's operating range.
e) Average Time: Average time refers to the duration over which the temperature sensor integrates or averages multiple readings to calculate a representative value. This parameter helps to smooth out fluctuations in temperature levels.
DIN 1, 2 :
The "Down" parameter refers to the downward button or action on the wall controller. The "Down" button may be used for actions such as decreasing brightness, lowering blinds, or triggering specific scenes, depending on the configuration or programming.
The set of actions in SW “ short press, short release, long press, long release, and permanent action can be used with various functions.
.
Invert Input: Invert input refers to a configuration setting that reverses the logic state of a digital input signal. When "Invert input" is enabled for a specific digital input channel (DIN) on the device, it means that the logical interpretation of the input signal is inverted.
For instance, if a digital input channel is normally interpreted as "active" when the input signal is high (logic level 1), enabling "Invert input" would cause the channel to be interpreted as "active" when the input signal is low (logic level 0), and vice versa.

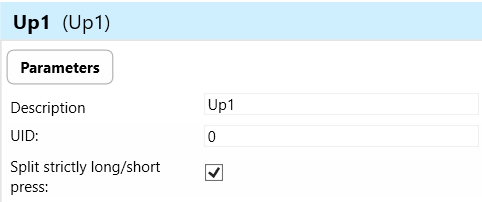

Split Strictly Long/Short Press of DIN: Split strictly long/short press of DIN is a feature that distinguishes between short and long press actions on a digital input channel (DIN).
Short press actions typically trigger immediate responses or commands, while long press actions may initiate different or additional functions after a predefined duration.
WSB3-40H parameters:
Inter-Humidity: "Inter-Humidity" refers to the internal humidity sensor integrated into the WSB3-20H device. It measures the relative humidity in the environment.
Offset Temperature: Offset temperature refers to an adjustment applied to the humidity readings to compensate for temperature variations that may affect the accuracy of humidity measurements. This adjustment ensures that humidity readings remain accurate and reliable across different temperature conditions.
Minimal Humidity Level: Minimal humidity level refers to the lowest threshold at which the WSB3 device will trigger actions or responses based on changes in humidity levels detected by the humidity sensor. When the measured humidity falls below the minimal level, the WSB3 device initiates appropriate actions to maintain or increase humidity levels
Maximal Humidity Level: Maximal humidity level refers to the highest threshold at which the WSB3 device will trigger actions or responses based on changes in humidity levels detected by the humidity sensor. When the measured humidity exceeds the maximum level, the WSB3 device initiates appropriate actions to reduce or control humidity levels.
Average Time: Average time refers to the duration over which the humidity sensor integrates or averages multiple readings to calculate a representative humidity value.
Dewpoint: Dewpoint refers to the temperature at which air becomes saturated with water vapor, leading to condensation. The WSB3-20H may have the capability to calculate or measure the dewpoint based on the temperature and humidity data from its integrated sensors.
Minimal Temperature: The minimal temperature parameter refers to the lowest temperature at which the integrated temperature sensor of the WSB3 device can accurately measure ambient temperature. This parameter is important because it defines the lower limit of the device's temperature measurement range.
Maximal Temperature of Dew-point: The maximal temperature of dew-point refers to the highest temperature at which dew point, the temperature at which air becomes saturated with moisture and dew begins to form, can occur. Dew point is influenced by both temperature and humidity, and exceeding the maximal temperature of dew point may lead to condensation or dew formation on surfaces.
It is possible to control and monitor all the bus units in iNELS cloud and iNELS app. There are two stages to set up this function. Stage one is to do configuration in iDM3 and stage 2 is to do Configuration in iNELS cloud page and iNELS app.
1. Unit and Parameter Selection:
Begin by accessing the iDM3 interface on your PC connected to CU. Navigate to the Device Manager section and carefully select the units and parameters you wish to control. This step is essential for determining what gets exported to the iNELS cloud and app.
2. CU Configuration and Third-Party Settings :
After the above step, go to the CU configuration in the iDM3, and select the page for third-party settings.
Inside the third-party settings page, designate the port for cloud connection. Set the mode of operation and choose the numerical system as hexadecimal. Pay close attention to verifying and configuring all essential parameters for successful cloud export.
3. Cloud Settings:
Move on to the Cloud Settings section within iDM3.
Input the details of your iNELS cloud account. If you haven't created one, utilize the "New User" tab on the iNELS Cloud web page to establish a free account. (Inels Cloud - ElkoEP).
Select the mode and input the cloud account credentials. Save the project to the central unit to generate and store the export project file in the iNELS cloud account.
1. Online Status Verification:
Once the cloud credentials and export settings in iDM3 are configured successfully, check the iNELS cloud account's Gateway section. Confirm that the Central Unit (CU) is online and that the export file has been automatically sent to the cloud under your account.
2. Device Creation in Cloud Platform:
In the cloud platform, you have to create new devices in order to control it remotely.
In the device tab, you will find the add device button, which can be used to associate export elements from IDM with the required types and icons.
After entering any name of the device, you select the icon, the MAC address of the communication gateway (in this case CU3), a specific type of device and the address of a specific function and element from the iNELS BUS system.
Note: In order to be able to use the iNELS application for communication with CU3 over the local network or the cloud, it is necessary to create a configuration on the website.
Follow these steps meticulously to ensure a seamless configuration process for controlling and monitoring all bus units through iNELS cloud and iNELS app.
iNELS units support MQTT integration on central units CU3-07M, CU3-08M, CU3-09M, and CU3-10M. It is necessary to select the devices and parameters for 3rd party integration on the device manager in the iDM.
Please note that you have an MQTT broker (local or cloud) running in the installation for this integration.
After you have a working MQTT broker you need to configure iNELS Central units to communicate with it. If you have no knowledge of what MQTT is, you can learn about it from MQTT Essentials articles. https://www.hivemq.com/mqtt/
There is a pre-installed MQTT broker in the iNLES bridge, it can be used to connect the iNELS Central units for integration in your projects.
Configuration in iDM3: Select units of 3rd Party integration.
Unit and Parameter Selection:
Begin by accessing the iDM3 interface on your PC connected to CU. Navigate to the Device Manager section and carefully select the units and parameters you wish to control. This step is essential for determining what gets exported to the 3rd party integration via MQTT.
2. CU Configuration and Third-Party Settings :
After the above step, go to the CU configuration in the iDM3, and select the page for third party settings.
Inside the third-party settings page, designate the port for third-party connection. Set the mode of operation and choose the numerical system as hexadecimal. Pay close attention to verifying and configuring all essential parameters for successful third-party integration.
3. MQTT Settings:
Move on to the MQTT Settings section within iDM3.
Input the details of your MQTT broker.
Select the mode and input the broker credentials such as IP, port username and password. Save the project to the central unit.
Provide any optional, supplementary information that may help in providing a more comprehensive understanding of the product feature
