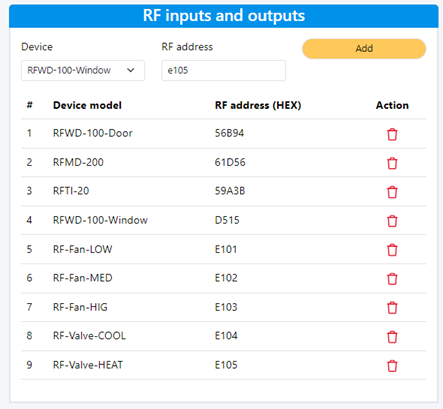

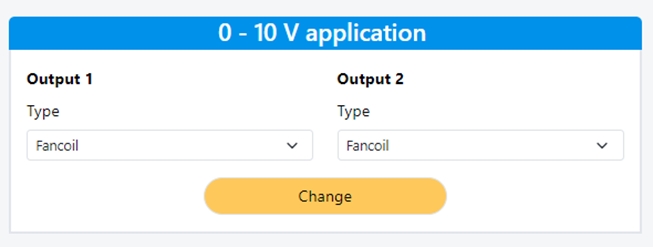

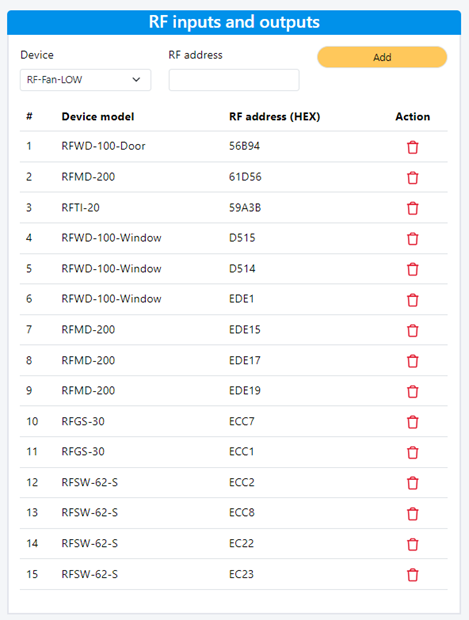

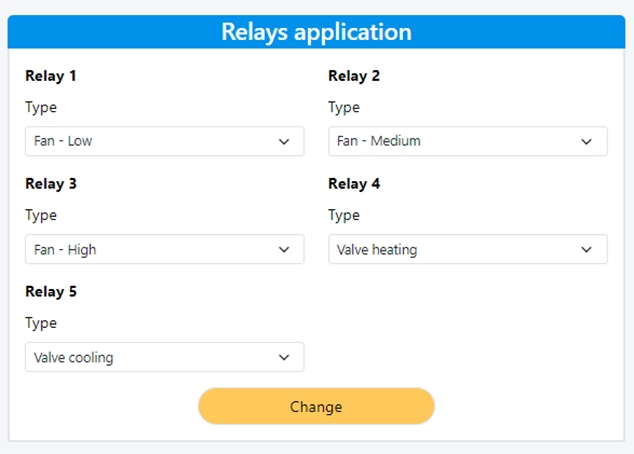

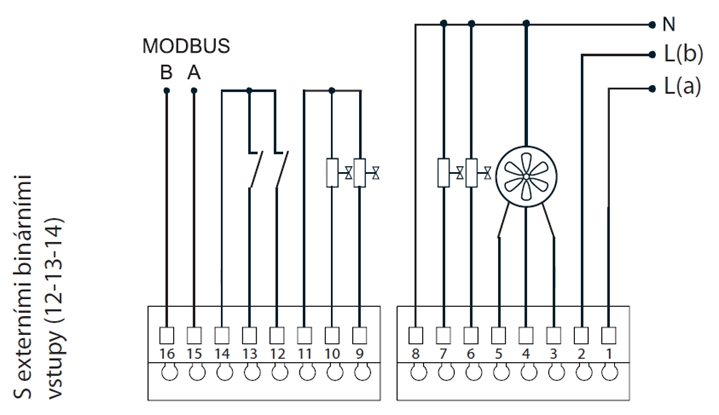

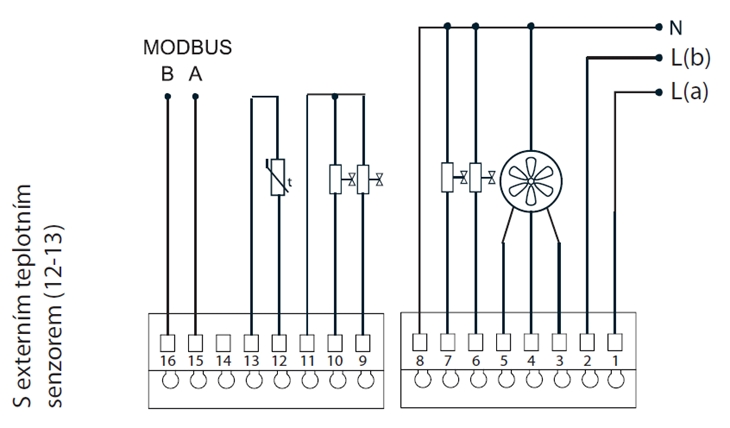

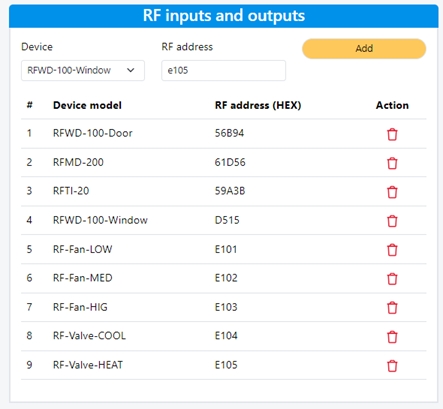

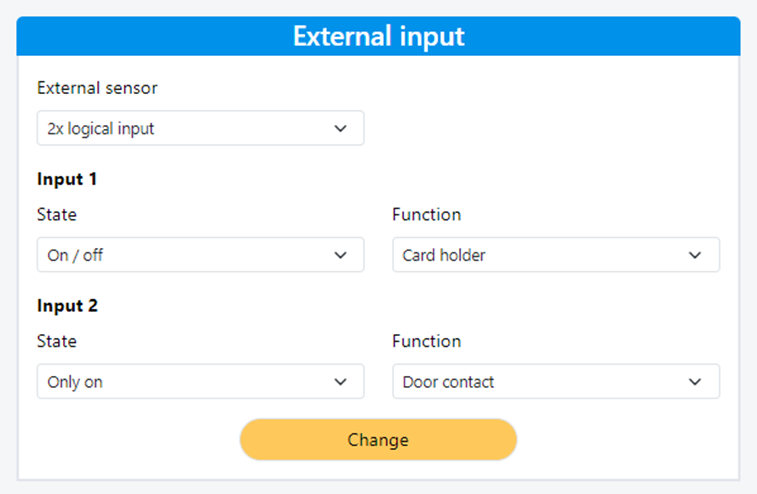

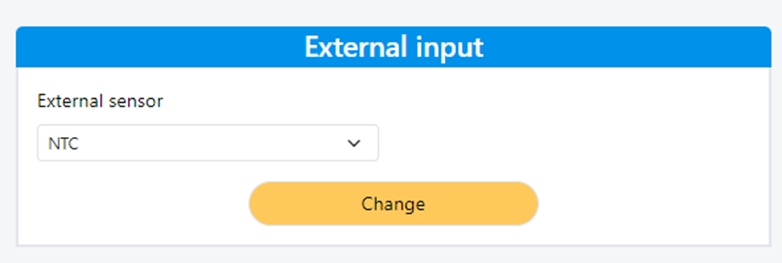

# Periphery page The **Periphery** tab is used to configure external RF devices and to control the FCU (Fan Coil Unit). *** ### **Relays Application** The RFTC-3 device allows configuration of five internal relays for various functions: * **Relays 1–3**: Control fan speeds: * **Low** – Low fan speed * **Medium** – Medium fan speed * **High** – High fan speed * **Relay 4**: Heating control * **Relay 5**: Cooling control #### **Flexible Configuration** * The relay settings are highly customizable. Users can configure the relays according to their specific needs. * If 0–10V control is used, no additional configuration is required. ![](https://t10544682.p.clickup-attachments.com/t10544682/badafda6-a94e-4b27-8631-dbb53fdfab60/image.png) *** ### **0–10V Application** The device also supports **0–10V outputs** for smooth control of compatible equipment, such as: * Fan coil units * Valves This provides more precise regulation of temperature and airflow. **Two Output Options** * For **0–10V fan coil** control * For **separate heating and cooling valve actuators** #### **Terminals** Use terminals **9, 10, and 11** to connect devices. Detailed wiring diagrams are provided in the documentation. ![](https://t10544682.p.clickup-attachments.com/t10544682/5d3cf8fc-77ab-4d2b-9d9f-872c227adbf8/image.png) ![](https://t10544682.p.clickup-attachments.com/t10544682/1ff4d2b8-bf2e-4f9b-ab77-9b1b0b12bd9e/image.png) #### **External Input** **NTC Sensor:** If this option is selected, a temperature sensor (NTC type) can be connected to terminals **12 and 13**. This sensor provides precise temperature measurement, which can be used to regulate additional device functions. **NTC Sensor Terminal Connections**: * **Terminal 12**: NTC sensor input * **Terminal 13**: NTC sensor input > For detailed wiring instructions, refer to the diagrams in the manual. ![](https://t10544682.p.clickup-attachments.com/t10544682/b529491d-f8e8-48dd-970b-3d8f7148adc3/image.png) ![](https://t10544682.p.clickup-attachments.com/t10544682/65401b2f-3af3-429b-9427-8fef2dd4bb8c/image.png) *** ### **2x Logical Input** The RFTC-3 device offers the option to connect **two binary (logical) inputs**. These can be assigned various functions such as: * Switch ON * Switch OFF * ON/OFF toggle * Short press * Long press #### **Possible Applications**: These inputs can be used to connect or integrate with various devices and functions, including: * **Door or window contacts** – to detect opening or closing * **Motion detectors** – to detect presence and trigger actions * **Card readers** – for user identification * **Mode Switching Options**: * **Standby** – Energy-saving mode * **Comfort** – Standard comfort mode * **OFF** – Device switched off * **Status Buttons**: * **DND (Do Not Disturb)** – Signals privacy request * **MUR (Make Up Room)** – Signals housekeeping request * **Butler** – Calls hotel service > Wiring diagrams are available in the manual for proper connection. ![](https://t10544682.p.clickup-attachments.com/t10544682/2086dccb-125a-4eb1-bd20-4b3e3284180a/image.png) ![](https://t10544682.p.clickup-attachments.com/t10544682/2c94888e-6eda-440f-8318-7bc5d2d4b048/image.png) ## **RF Inputs and Outputs** The RFTC-3 allows the integration of RF addresses for connected RF devices. These addresses enable linking and control of the following RF components: ### **Supported RF Devices** * **Window and door contacts** * **Motion sensors** * **Indoor and outdoor glass controllers** * **External temperature sensor** * **External relay for controlling FCU or heating (RFSAxx)** Additionally, the RFTC-3 can be linked with **external RF relays** that can replace internal relays for controlling heating and fan outputs. *** ### **Maximum Number of Supported RF Devices** * **RFGS 30B**: Maximum 2 pcs * **RFSW 62**: Maximum 8 pcs * **RFMD**: Maximum 4 pcs * **RFWD**: * **Door contact**: 1 pc * **Window contact**: 3 pcs ![](https://t10544682.p.clickup-attachments.com/t10544682/c04222ad-37a0-4e2b-b404-21052180b3dd/image.png) ![](https://t10544682.p.clickup-attachments.com/t10544682/f571a5db-5eac-4c3a-b245-9fe2d93c3665/image.png) *** ## **Behavior and Interaction of RF Elements** The logic created by linked RF components functions as follows: * **Door Contact** * When the door opens, the **Comfort** mode is activated for a pre-defined time. * After this time expires, the system switches to **Standby** mode (the duration is set in the **Options** section). * If motion is detected during this time by the motion sensor, **Comfort** mode remains active—indicating someone is in the room. * **Comfort** mode stays active until the next door opening event. * **Window Detector** When triggered, it turns off heating or temporarily switches from **Comfort** to **Standby** mode. * **Glass Controllers (RFSW and RFGS)** * Can be paired for controlling various functions. * Hotel service buttons like **DND**, **MUR**, and **Butler** are interconnected so that their states synchronize across devices. ### **Configuration and Customization** * These behaviors can be customized in the **Options** section. * You can define timers, switching rules, and behavior based on RF input triggers. ### Wiring/Connection examples --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://wiki.inels.com/inels-home/inels-wireless/devices/inels-wireless-heating-temperature-control/thermostats/rftc-3/periphery-page.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
