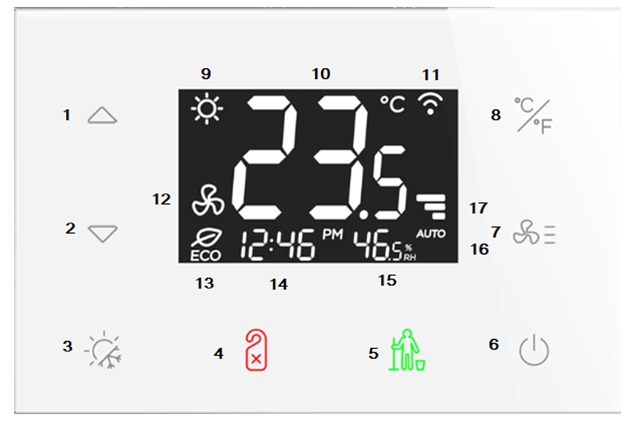

Button Functions and Indicators of RFTC-3
Increase Set Temperature: Use this button to increase the set temperature.
Decrease Set Temperature: Use this button to decrease the set temperature.
Long Press – Switch Heating and Cooling Modes: A long press on the button toggles between heating and cooling modes.
Activate/Deactivate DND: Button to activate or deactivate the “Do Not Disturb” (DND) mode.
Activate/Deactivate MUR: Button to activate or deactivate the “Make Up Room” (MUR) mode.
Mode Switching: Button to switch between Comfort, Standby, ECO, bP (Building Protection), and Auto modes. A long press disables regulation.
Fan Speed Switching: Button to switch between fan speeds: Low, Medium, High, and Auto.
Switch Between °C and °F: Button to toggle between Celsius and Fahrenheit temperature units.
Current Mode: Indicator displays the current heating (sun icon) or cooling (snowflake icon) mode.
Temperature Display: The screen shows either the room temperature or the set temperature, depending on the current setting.
Wi-Fi Symbol: Indicates active Wi-Fi. Hold buttons 1, 2, 7, and 8 to activate Wi-Fi. Blinking symbol indicates active connection; a steady symbol indicates Wi-Fi is broadcasting but not connected. If unused for more than 5 minutes, Wi-Fi automatically deactivates.
Active Fan: Indicates whether the fan is currently active.
Active ECO Mode: Indicates when the ECO mode is active.
Current Time: Displays the current time.
Humidity: Displays the current room humidity.
Active Auto Mode or Regulation OFF: Indicates if Auto mode is active or regulation is turned off.
Ventilation Speed: Indicates the current fan speed. These buttons and indicators provide complete control over RFTC-3 functions and modes, ensuring optimal temperature management and comfort in the room.
Network Settings Reset Options
To erase stored network settings (e.g., Wi-Fi connection, client/AP mode, IP address, etc.), press and hold buttons 3 + 4 + 5 + 6 for several seconds (approximately 5–10 seconds). After this action, the device will return to its default network mode—typically activating its own Access Point (AP), which can be used to reconfigure the settings.
Enable / Disable Access Point (AP) Mode
To manually enable or disable Wi-Fi Access Point mode, press and hold buttons 7 + 8 for approximately 3–5 seconds. In AP mode, the device broadcasts its own Wi-Fi network, allowing connection for configuration. Turning off the AP mode switches the device to Client Mode, where it expects to connect to a previously known Wi-Fi network.
