Buttons

In this section, you can configure the functions of individual buttons on the RFTC-3 device. Each button can be assigned a specific function based on your needs.

Configuration Options

  • Opening the Buttons Tab: In the Buttons tab, you can set the individual functions of the RFTC-3 buttons.

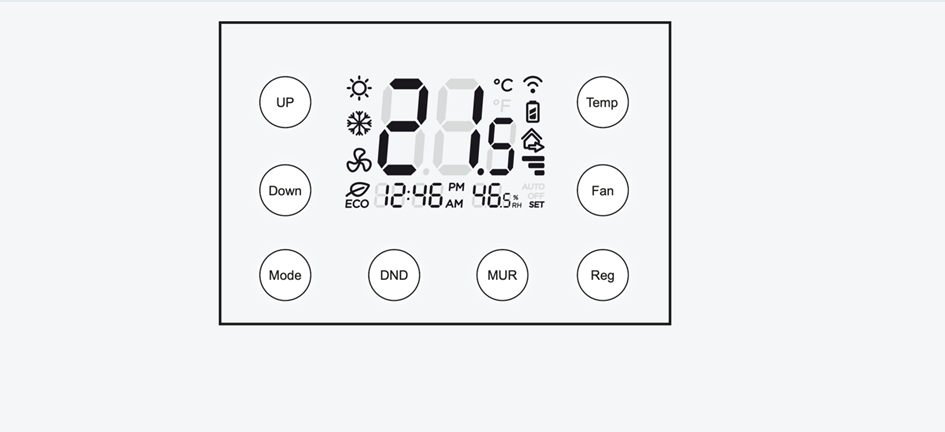

  • Button Settings: After opening the settings, a display preview with virtual buttons will appear. You can click on these buttons to open a menu where you can set the function of each button.

  • Default Settings: If you do not wish to change the buttons, it's not necessary. You can leave the buttons in their default configuration.

  • Available Settings: When configuring a button, you can choose from the following modes:

    • Function: Contains all basic functions, such as:

      • Up Temperature / Down Temperature – to increase or decrease the temperature

      • Mode – to switch between Heat and Cool modes

      • DND – Do Not Disturb mode

      • MUR – a specific function for certain models

      • Temp – to change the temperature unit between Celsius and Fahrenheit

      • Fan – to control fan speed

      • Reg – for turning regulation on/off or switching modes

      • None – unassigned button

    • Automation: You can assign a button to trigger automation in the system.

    • RF Button: You can assign buttons with IDs 1–8 for two addresses (1–2).

  • RF Button Pairing: If you select RF Button, you can pair the button with an RF actuator by initiating the pairing mode. Press the Pair button to activate pairing mode.
