Options page
Panel
Mainly used for display settings
Display – Backlight Illumination: This setting allows you to configure the display backlight to stay constantly on or off to save energy.
If the "Efficient" option is selected, the backlight turns on when a button is activated and then automatically turns off after the set Time of illumination.
If the proximity sensor is activated, the backlight turns on when the sensor detects motion or presence. Temperature
Set: Displays the setpoint temperature on the screen.
Room: Displays the room temperature on the screen.
Temperature Unit: The user can choose between °C and °F. Time and Humidity
Show Time: Option to display the current time on the screen.
Show Humidity: Option to display room humidity on the screen. Occupancy/Open Window Icon
Show Occupancy/Window Icons: The user can define whether the house icon on the screen represents room occupancy or an open window. Temperature Units This option allows you to select the displayed temperature unit — either Celsius (°C) or Fahrenheit (°F).
Buttons
Backlight
Illumination: Allows the user to set button backlight to always on or off to save energy.
If the "Efficient" option is selected, the backlight turns on after a button press and switches off after a set time.
If the proximity sensor is activated, the backlight is active from the time the sensor is triggered. Power Button
Power Button Behavior: Allows setting the behavior of the OFF button—short press can switch the mode, long press can turn off the device or reverse. Proximity Sensor
Proximity Sensor: Enabling this option activates the proximity sensor on the device. It is also possible to define the distance at which the sensor should be triggered. Room Control Timers
Occupancy Timer: Defines how long the Comfort mode remains active after the door contact is triggered. After this period, the device switches to Standby mode if no signal is received from the RFMD unit.
Window Timer: Defines the delay before switching to Standby mode (minimum window open duration). It can also define the delay for switching off RFTC regulation after the window is opened.

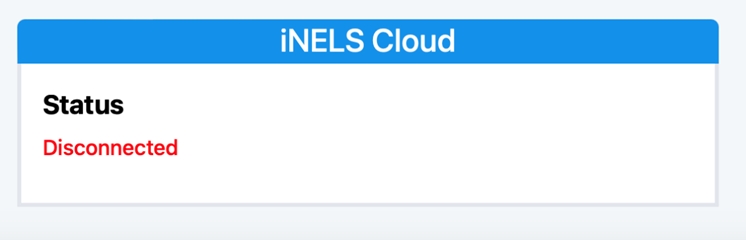

iNELS Cloud
Displays the current RFTC connection status to iNELS Cloud. The user can monitor whether the device is successfully connected to the cloud or not.

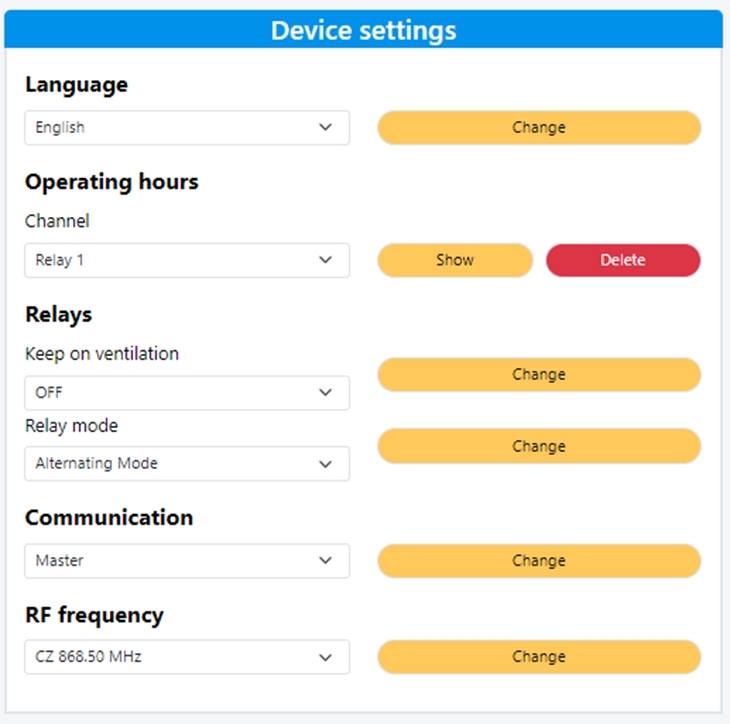

Device settings
Language
Language: Allows the user to set the display language on the device. Operating Time
Operating Hours: Displays the duration for which a given relay has been switched on. This information allows the user to monitor how long the relay has been active. Relays
Keep on Ventilation: If this option is enabled (ON), the fan will remain on even when the set temperature is reached and regulation would normally stop.
Relay Mode: Allows the user to select the operating mode for relay control.
Alternating Mode: This setting allows the fan speed relays to alternate. In alternating mode, fan speeds switch one after another.
Multi-stage Mode: In this mode, lower fan speed stages remain active even when higher speeds are engaged. Communication Master/Slave: Determines whether the device operates as a master unit or can be paired as a slave with the eLAN 103 gateway.
When set as Master – the device can function as a gateway (GW) with automatic display of the control card for regulation and other features. RF Frequency
RF Frequency: Allows the user to set the RF frequency. The default frequency is 868.5 MHz.

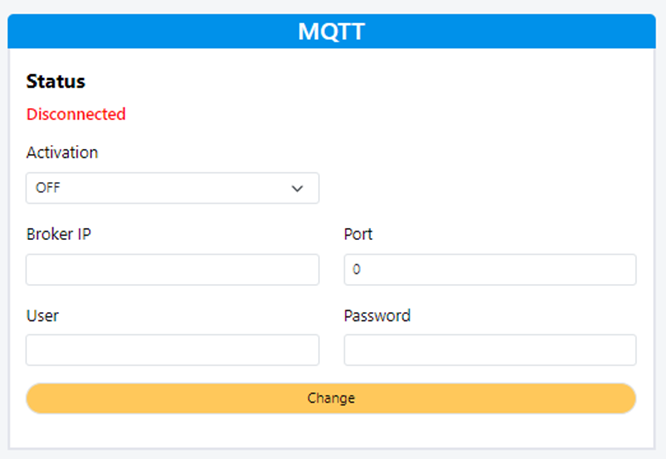

MQTT
Connecting RFTC to an MQTT broker allows users to integrate it with third-party systems and platforms, expanding the options for controlling and monitoring their home environment. Below are some integration possibilities:
Integration with Home Automation Systems: Users can connect RFTC to home automation systems such as Home Assistant, OpenHAB, or Node-RED. This integration enables centralized control and monitoring of the home environment through a unified interface. MQTT Connection Settings
IP Address: Allows the user to enter the IP address of the MQTT broker to which RFTC will connect.
Port: Allows the user to specify the port on which the MQTT broker is listening.
Login Credentials: The user can enter credentials such as username and password if required by the MQTT broker.
