MCD3-01

Ultra Slim microwave motion detector

Overview of devices

An overview of the product design and usage. Also includes circuit diagrams, terminal details, etc.,

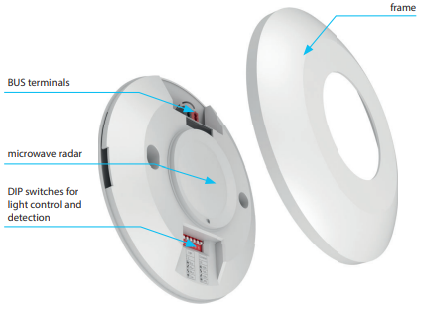

MCD3-01

Key features

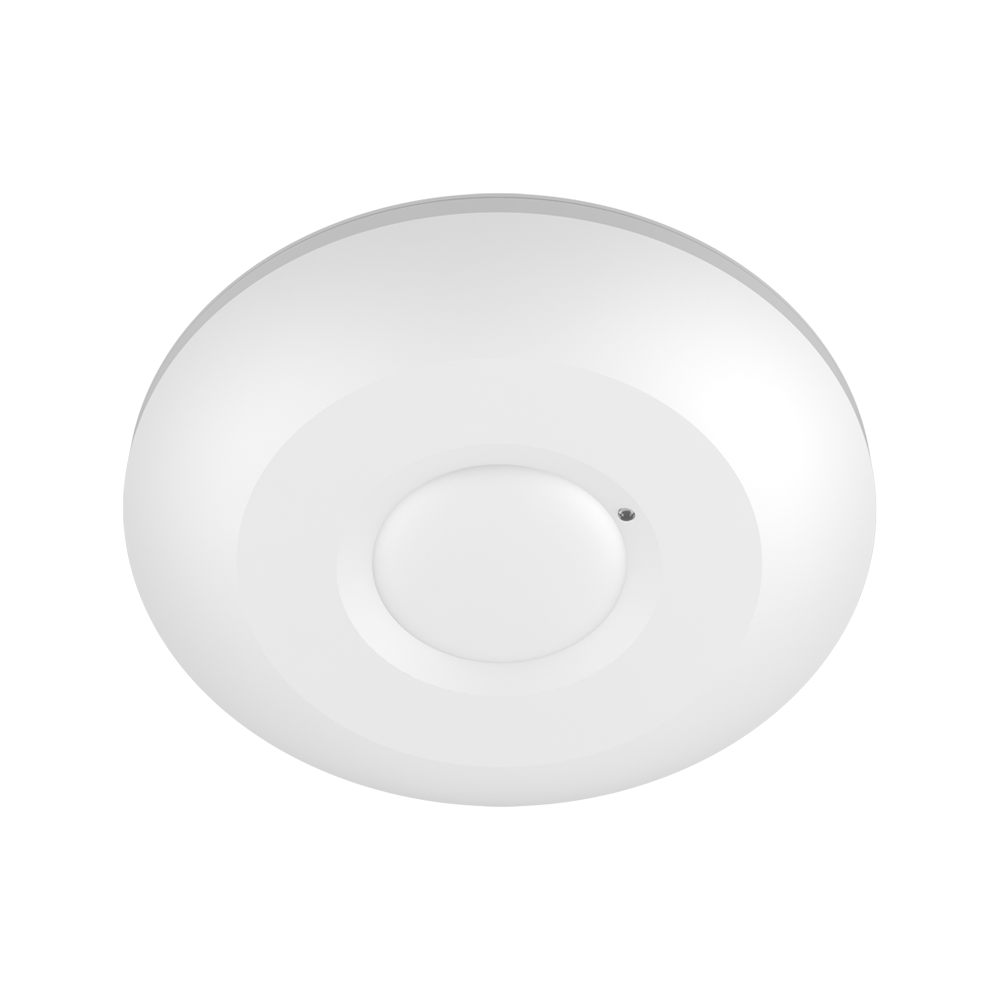

Type and Design: The MCD3-01 is a highly versatile and compact motion sensor. It is designed for ceiling or surface mounting applications.

Integration and Aesthetics: The sensor has an ultra-slim design that seamlessly integrates into various environments, , providing reliable and efficient motion detection capabilities. Its compact form factor with dimensions of 115 x 24 mm allows for easy installation and integration into different ceiling or surface mounting applications.

Power Source: The sensor is powered by a 27 VDC power source. It specifically utilizes the iNELS BUS system, ensuring stable and efficient operation.

Motion Detection Technology: The MCD3-01 utilizes a 5.8 GHz continuous wave (CW) radar system. It operates in the ISM band, providing precise and reliable motion detection.

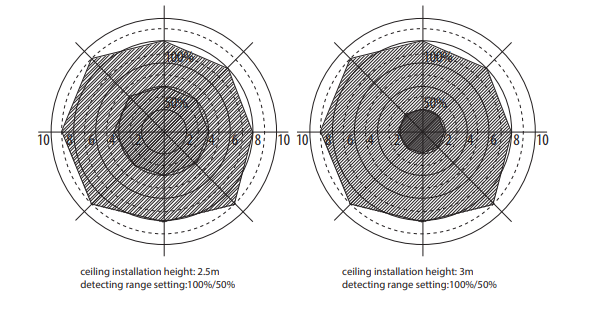

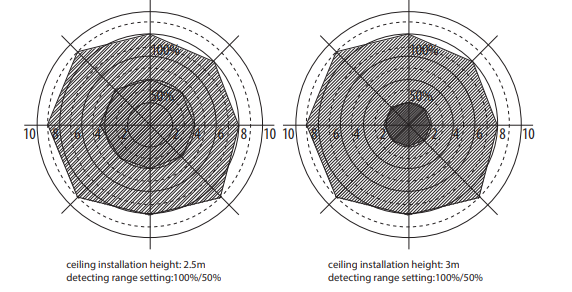

Detection Angle and Range: The sensor offers a wide 360-degree detection angle, ensuring comprehensive coverage of the monitored area. The sensor's reach is adjustable, allowing the user to set the detection range. The reach can be configured within the range of 2 to 10 meters in radius, providing flexibility for different applications.

Time Settings: The MCD3-01 features a software setting for adjusting time settings. The time setting can be configured, allowing customization of the sensor's activation duration.

Operating Conditions: The sensor is designed to operate effectively in various environmental conditions. It has a wide working temperature range of -10°C to +40°C, ensuring reliable performance in different settings.

Integration with iNELS Units: The MCD3-01 can be seamlessly integrated and combined with other iNELS units using the iDM3 software. This integration allows for the implementation of additional logic and functions, enabling automation and customized control scenarios based on specific requirements.

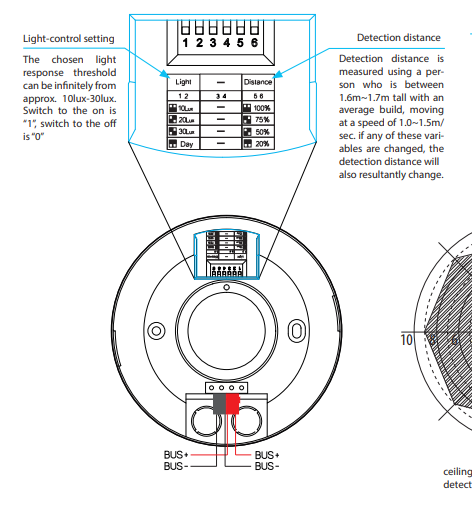

Exemplary circuit diagram/ Wiring Diagram

Compatibility chart ( CU, minimal FW version and Integration)

The chart illustrates the compatibility between MCD3-01 and various central units, firmware versions, and integration options.

SL No	Support Central units	Support FW	Support in MQTT	Support in HASS
1	CU3-01M	Preparation	NA	NA
2	CU3-02M	Preparation	NA	NA
3	CU3-07M	Preparation	NA	NA
4	CU3-08M	Preparation	NA	NA
6	CU3-09M	Preparation	Preparation	Preparation
7	CU3-10M	Preparation	Preparation	Preparation

SL No

Support Central units

Support FW

Support in MQTT

Support in HASS

CU3-01M

Preparation

CU3-02M

Preparation

CU3-07M

Preparation

CU3-08M

Preparation

CU3-09M

Preparation

CU3-10M

Preparation

Programming in iDM

Introduction

iNELS Design Manager, or IDM3, is for programming iNELS units. This software serves as the platform for configuring device parameters, defining functions, and executing the programming required for iNELS units.

Device parameters, such as sensor range and thresholds, backlights, and operational modes, can be easily adjusted within the IDM3.

The process of programming in IDM3 typically involves defining functions and establishing logical connections between different devices. This allows for the creation of automation scenarios and the implementation of intelligent control strategies.

Starting up

Select the "blue control icon" as shown in Fig 1 > Clicking on the option "New project from default template“ allows you to create a new project from a predefined template.

Select the "Device manager" (Fig 1)> Add "New unit "> Select the central unit > Add "New unit">Select the "Internal-Master/ BUS"> Add "New unit "> Add the devices> Click on the devices to see the "Parameters".

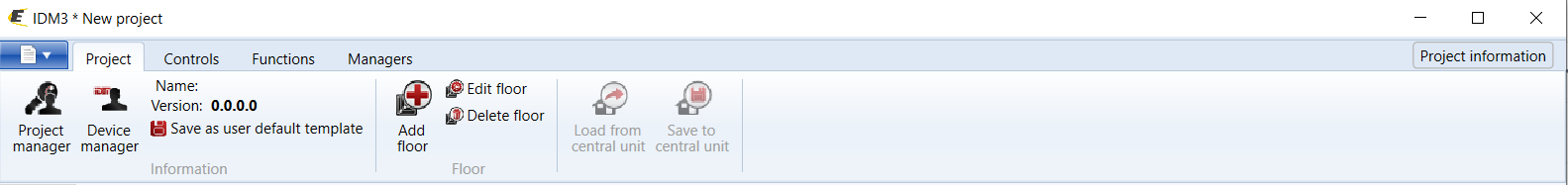

Fig 1: iDM Console

Parameters:

Parameters in the iNELS devices refer to the measurable factors or characteristics that define the behavior or performance of the device. These could include electrical properties, physical dimensions, environmental conditions, and various other specifications depending on the type of device.

These are settings specific to individual devices within your automation system.

The specific parameters of the MCD3-01 in the iDM as shown in Fig.2

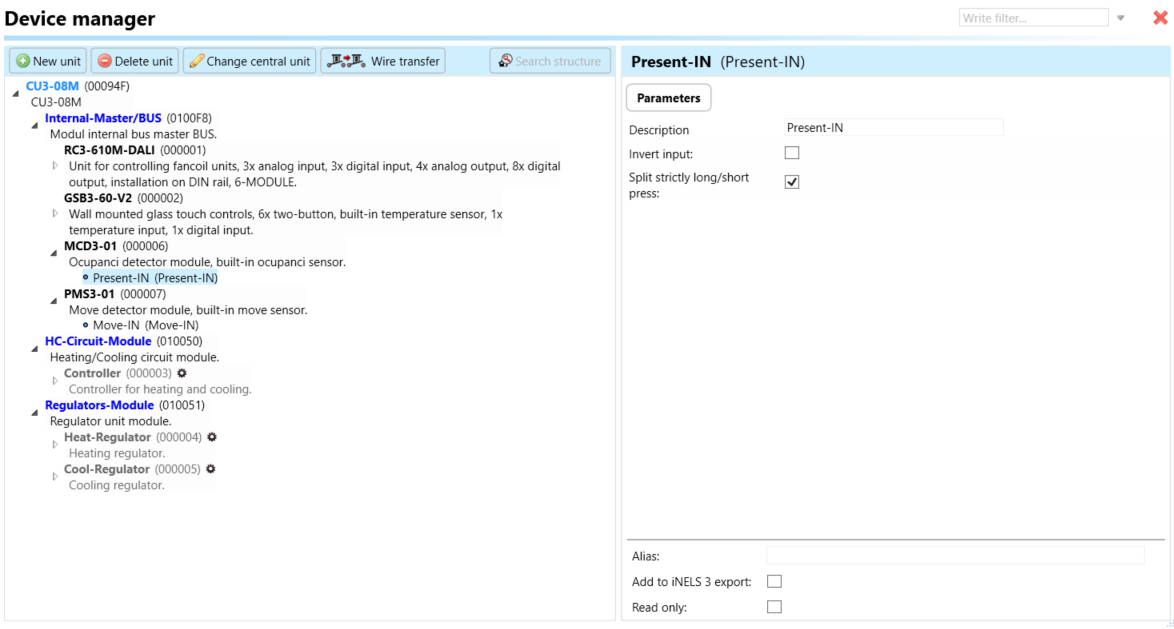

Fig.2: Parameters of MCD3-01

Clicking on the MCD3-014 (Fig.2), will navigate to the selected firmware, address, name, and description, along with other parameters as described below :

Present IN: "Present-IN" likely refers to a specific input signal that is triggered when the motion sensor detects the presence of a person or movement in the monitored area.

In the context of motion or occupancy sensors, "Present-IN" can be understood as an input that activates whenever the sensor registers occupancy or motion.

The Present-IN parameters shown in the image include the following:

Invert Input:
- This option, when selected, will invert the logic of the input signal. In the context of a motion or presence sensor, this means that instead of triggering an action when motion is detected (presence), it will trigger the action when no motion is detected (absence). Essentially, it reverses the default behavior of the sensor.
Split Strictly Long/Short Press:
- This option enables the system to differentiate between short and long activations of the input signal. For example, if a presence is detected, you could configure different actions based on how long the presence remains. A "short press" could trigger one action (e.g., turning lights on briefly), while a "long press" (extended presence) could trigger a different action (e.g., prolonging the lighting duration).

Exports for iNELS Cloud and APP

Setting Up Control and Monitoring for iNELS Cloud and iNELS App

It is possible to control and monitor all the bus units in iNELS cloud and iNELS app. There are two stages to set up this function. Stage one is to do configuration in iDM3 and stage 2 is to do Configuration in iNELS cloud page and iNELS app.

Configuration in iDM3.

1. Unit and Parameter Selection:

Begin by accessing the iDM3 interface on your PC connected to CU. Navigate to the Device Manager section and carefully select the units and parameters you wish to control. This step is essential for determining what gets exported to the iNELS cloud and app.

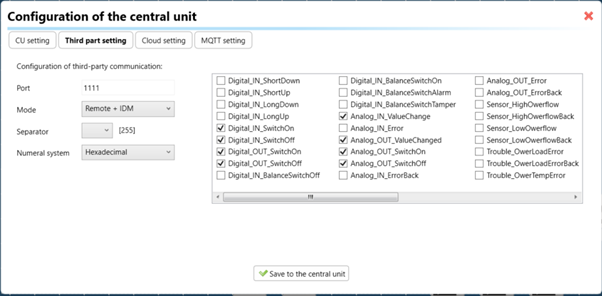

2. CU Configuration and Third-Party Settings :

After the above step, go to the CU configuration in the iDM3, and select the page for third-party settings.

Inside the third-party settings page, designate the port for cloud connection. Set the mode of operation and choose the numerical system as hexadecimal. Pay close attention to verifying and configuring all essential parameters for successful cloud export.

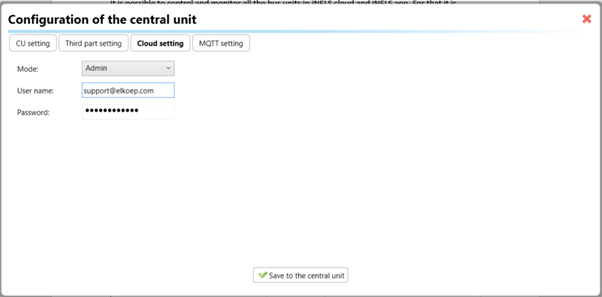

3. Cloud Settings:

Move on to the Cloud Settings section within iDM3.

Input the details of your iNELS cloud account. If you haven't created one, utilize the "New User" tab on the iNELS Cloud web page to establish a free account. (Inels Cloud - ElkoEP).

Select the mode and input the cloud account credentials. Save the project to the central unit to generate and store the export project file in the iNELS cloud account.

Configuration in iNELS cloud page and iNELS App.

1. Online Status Verification:

Once the cloud credentials and export settings in iDM3 are configured successfully, check the iNELS cloud account's Gateway section. Confirm that the Central Unit (CU) is online and that the export file has been automatically sent to the cloud under your account.

2. Device Creation in Cloud Platform:

In the cloud platform, you have to create new devices in order to control it remotely.

In the device tab, you will find the add device button, which can be used to associate export elements from IDM with the required types and icons.

After entering any name of the device, you select the icon, the MAC address of the communication gateway (in this case CU3), a specific type of device and the address of a specific function and element from the iNELS BUS system.

Note: In order to be able to use the iNELS application for communication with CU3 over the local network or the cloud, it is necessary to create a configuration on the website.

Follow these steps meticulously to ensure a seamless configuration process for controlling and monitoring all bus units through iNELS cloud and iNELS app.

3rd Party Integration with iNELS BUS

3rd Party Integration (MQTT)

iNELS units support MQTT integration on central units CU3-07M, CU3-08M, CU3-09M, and CU3-10M. It is necessary to select the devices and parameters for 3rd party integration on the device manager in the iDM.
Please note that you have an MQTT broker (local or cloud) running in the installation for this integration.
After you have a working MQTT broker you need to configure iNELS Central units to communicate with it. If you have no knowledge of what MQTT is, you can learn about it from MQTT Essentials articles. https://www.hivemq.com/mqtt/
There is a pre-installed MQTT broker in the iNLES bridge, it can be used to connect the iNELS Central units for integration in your projects.

Configuration in iDM3: Select units of 3rd Party integration.

Unit and Parameter Selection:

2. CU Configuration and Third-Party Settings :

After the above step, go to the CU configuration in the iDM3, and select the page for third party settings.

Inside the third-party settings page, designate the port for third-party connection. Set the mode of operation and choose the numerical system as hexadecimal. Pay close attention to verifying and configuring all essential parameters for successful third-party integration.

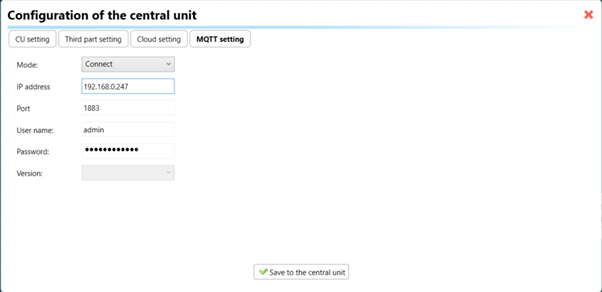

3. MQTT Settings:

Move on to the MQTT Settings section within iDM3.

Input the details of your MQTT broker.

Select the mode and input the broker credentials such as IP, port username and password. Save the project to the central unit.
