# Pairing & Configuration

## Pairing Controllers with iNELS Wireless Devices

There are two types of controllers in iNELS Wireless:

* **With pairing button**
* **Without pairing button** (older versions, Compatibility Mode required)

### Controllers with a Pairing Button

You can identify them by:

* Pairing symbol printed on the back
* A physical pairing button accessible on the controller

**Location of the pairing button**

* **RF Key** – on the side near button no. 5
* **RFGB (round or sharp)** – press the upper control mandrel (e.g. with paperclip), the battery ejects and reveals the pairing button
* **RFWB** – accessible after removing the controller flap

**Pairing procedure**

1. **Controller into pairing mode**
   * Hold the pairing button **1 s** → controller enters pairing (red LED short blink).
2. **Device into pairing mode**
   * Hold the **PROG** button on the device (time depends on device type, see Table 1).
3. **Assign function**
   * Press the chosen button on the controller with the required number of presses (see Table 2).
4. **Confirm**
   * Briefly press PROG (device) + briefly press pairing (controller).
   * LED blinks = successful pairing.

{% hint style="info" %}
*Tip: Always put the controller into pairing first, then the device.*
{% endhint %}

### Controllers without a Pairing Button

{% hint style="info" %}
(Older models, two possible pairing modes)
{% endhint %}

#### A) Pairing without Compatibility Mode

1. Insert a new battery (or remove >5 s, then insert).
2. While red LED is on (3 s), press & hold button 1 until LED flashes (driver mode).
3. Put device into pairing (PROG 1–3 s).
4. Assign function by pressing controller button the required number of times (Table 2).
5. Confirm with short PROG press and reinsert battery.

#### B) Pairing in Compatibility Mode

1. Remove battery >5 s.
2. Insert battery → red LED on 3 s.
3. While LED on, press and hold buttons **1+2** until LED flashes rapidly (Compatibility Mode).
4. Put device into pairing (PROG 1–3 s).
5. Assign switching functions to devices (1–6, see Table 2).
6. Assign dimming functions to devices (1-8 see Table 3).
7. Confirm by briefly pressing PROG.

{% hint style="info" %}
*Switching between modes is possible — fast flashing = Compatibility, double flash = Normal.*
{% endhint %}

## Clearing Memory

* **Single button/channel only** – Hold PROG **5–7 s** (device type dependent), then press the controller button to unpair.
* **Whole device** – Hold PROG **8–11 s** (see Table 1). Device stays in pairing mode, all buttons cleared.

#### Table 1: PROG Button Holding Times

| **Device Type**               | **Press PROG for…** | **Function**                             |
| ----------------------------- | ------------------- | ---------------------------------------- |
| Switching / Dimming units     | **2-5 s**           | Pairing mode                             |
| Shutter controllers           | **2-5 s**           | Pairing mode                             |
| Multi-channel / special units | **3-5 s**           | Pairing mode                             |
| Any device                    | **5–7 s**           | Erase paired button (single channel)     |
| Any device                    | **8–11 s**          | Erase **all** controllers (clear memory) |
| Any device                    | **>12 s**           | Restore factory settings                 |

***

#### Table 2: Switching Functions Assignment by Number of Button Presses

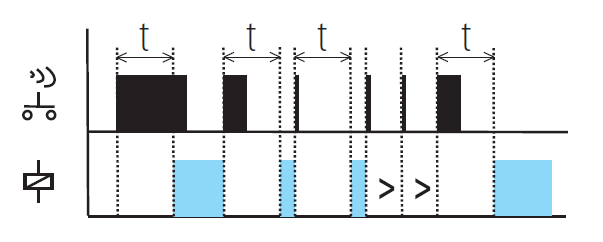

<table data-header-hidden><thead><tr><th width="117"></th><th></th></tr></thead><tbody><tr><td><strong>No. of presses on controller</strong></td><td><strong>Assigned Function</strong></td></tr><tr><td>1×</td><td><p>PushButton - The output contact will be closed by pressing the button and opened by releasing the button.</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/7bd68a55-a358-46bf-9f04-675b3dcb90ab/image.png" alt="" data-size="original"></p></td></tr><tr><td>2×</td><td><p>Switch on - The output contact will be closed by pressing the button</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/d50d95e4-1802-4b28-8dd0-001be605ebea/image.png" alt="" data-size="original"></p></td></tr><tr><td>3×</td><td><p>Switch off - The output contact will be opened by pressing the button.</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/fafe4f14-9436-4fa9-8865-ea85db722b99/image.png" alt="" data-size="original"></p></td></tr><tr><td>4×</td><td><p>Impulse relay - Each button press switches the output contact to the opposite state (ON/OFF).</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/c7d1b0c4-071b-4469-83d0-81763f117b58/image.png" alt="" data-size="original"></p></td></tr><tr><td>5×</td><td><p>Delayed OFF - Pressing the button closes the output contact. After the set time(t = 2 s – 60 min), the contact opens automatically.</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/4c0140e4-c070-4ae4-80f3-531b824fa89f/image.png" alt="" data-size="original"></p></td></tr><tr><td>6×</td><td><p>Delayed ON - Pressing the button opens the output contact. After the set time(t = 2 s – 60 min), the contact closes automatically.</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/5ee01c85-ae3d-4cda-873c-61917fff679d/image.png" alt="" data-size="original"></p></td></tr></tbody></table>

#### Table 3: Dimming Functions Assignment by Number of Button Presses

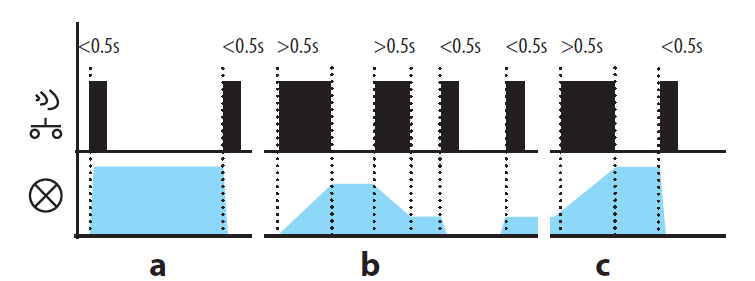

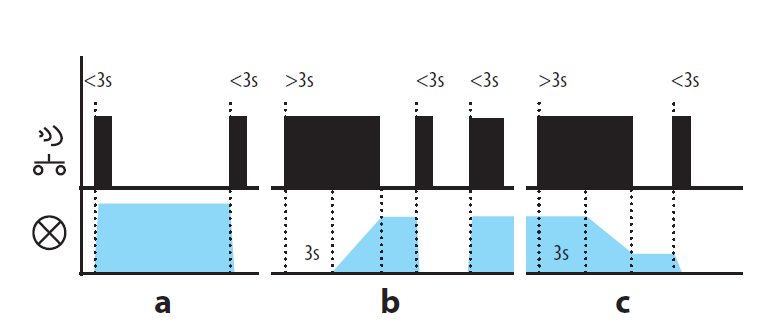

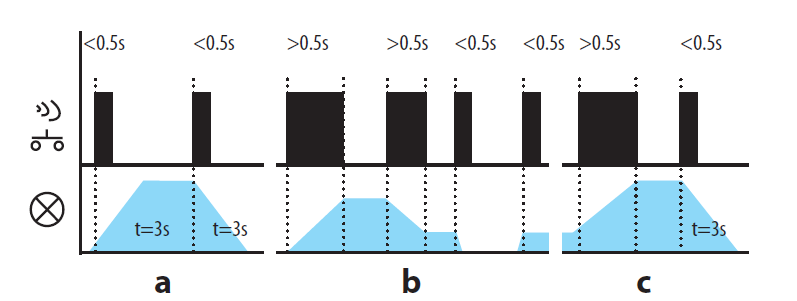

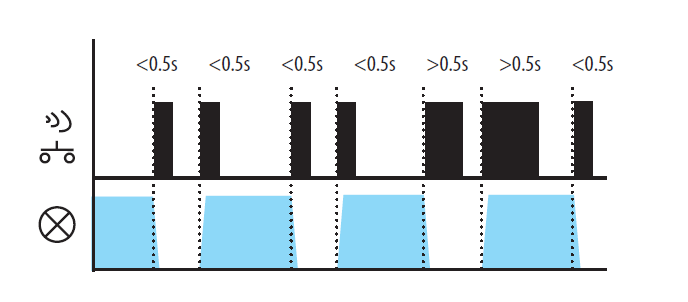

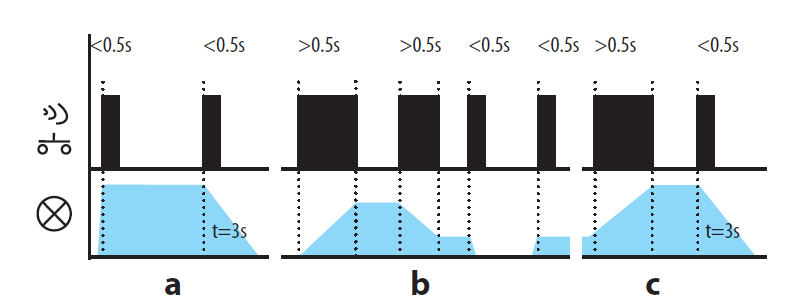

<table data-header-hidden><thead><tr><th width="145.79998779296875"></th><th></th></tr></thead><tbody><tr><td><strong>No. of presses on controller</strong></td><td><strong>Assigned Function</strong></td></tr><tr><td>1×</td><td><p>The brightness level is stored in memory. A short press switches the light on/off at this level, while a long press adjusts the intensity. The actuator retains the setting even after a power loss.</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/cae979b6-c0a3-41f1-ac45-9387460933a5/image.png" alt="" data-size="original"></p></td></tr><tr><td>2×</td><td><p>The brightness level is stored in memory. Short press switches the light on/off at this level. Press >3 s to adjust intensity. Setting is retained after power loss.</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/82dd0dd2-011a-4d1f-92b9-98a457d2cade/image.png" alt="" data-size="original"></p></td></tr><tr><td>3×</td><td><p>The brightness level is stored in memory. A short press switches the light on/off at this level. A long press adjusts the intensity. The setting is retained after power loss.</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/489f455f-98f9-4429-ac3e-11e7cc46f6e2/image.png" alt="" data-size="original"></p></td></tr><tr><td>4×</td><td><p>Brightness is stored inmemory. Short press switches thelight on/off at this level,long press adjusts it.The setting remainssaved even afterpowerloss.</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/b2880c64-1718-4b62-a539-2828b7f62893/image.png" alt="" data-size="original"></p></td></tr><tr><td>5×</td><td><p>After pressing the programmed button, the light begins to illuminate in the programmed time interval in a range of 2 s to 30 min.</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/cc66cb92-1263-4df9-bbd4-65bfed4d9fa1/image.png" alt="" data-size="original"></p></td></tr><tr><td>6×</td><td><p>After pressing the programmed button, the light begins to dim in the programmed time interval in a range of 2 seconds to 30 minutes.</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/a0ef3fb5-486e-41e9-8cd2-bb99dffca7e8/image.png" alt="" data-size="original"></p></td></tr><tr><td>7x</td><td><p>If the light is switched off , pressing the programmed button will switch it on. If the light is switched on, pressing the programmed button will switch it off</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/a4640da1-d485-4a16-b72f-6e139abacadc/image.png" alt="" data-size="original"></p></td></tr><tr><td>8x</td><td><p>The dimmer output switches off by pressing the button.</p><p><img src="https://t10544682.p.clickup-attachments.com/t10544682/a5d8eb44-0484-4397-9976-817510144778/image.png" alt="" data-size="original"></p></td></tr></tbody></table>

## Detectors Function Assignment

### **Immediate Response**

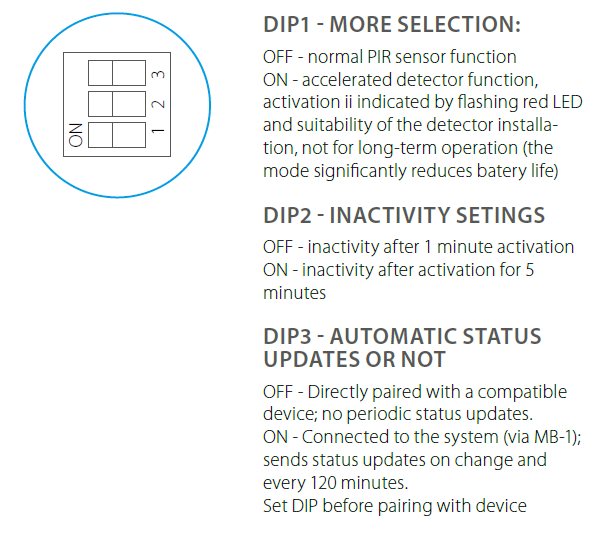

1. Set the DIP switch (e.g. with a screwdriver).

![](https://t10544682.p.clickup-attachments.com/t10544682/71117818-343d-4ead-ad6d-dc691d0ccb46/image.png)

<div align="left"><img src="https://t10544682.p.clickup-attachments.com/t10544682/6b802b5e-df29-4e61-91cb-e8dc449581a4/image.png" alt="" width="418"></div>

&#x20;

2. Press and hold for pairing: 2–5 s(single-channel) or 3–5 s (dual-channel)

![](https://t10544682.p.clickup-attachments.com/t10544682/87026c1e-c22b-41d8-8769-80ac4c6bd0d7/image.png)

&#x20;

3\. Insert the battery into the battery holder in the detector.30 sec. pause between removing and inserting batery required!!

![](https://t10544682.p.clickup-attachments.com/t10544682/ca3ed5d3-cd7b-441c-b41b-82db5cd0d2ea/image.png)

4\. Short press of the PROG button for less than 1s to close pairing mode.![](https://t10544682.p.clickup-attachments.com/t10544682/86254f67-1913-4660-964c-5f6b53ece8e7/image.png)

### **Delayed Return With Time Adjustment**

1. Set the DIP switch (e.g. with a screwdriver).

![](https://t10544682.p.clickup-attachments.com/t10544682/c06f5519-c546-4601-8aca-321656037132/image.png)

<div align="left"><img src="https://t10544682.p.clickup-attachments.com/t10544682/ec04b2bb-dad2-4ed8-a556-32f024f87c51/image.png" alt="" width="418"></div>

&#x20;

2. Press and hold for pairing: 2–5 s (single-channel) or 3–5 s (dual-channel).

![](https://t10544682.p.clickup-attachments.com/t10544682/1f7ef468-17b2-429c-9b5a-64a0dffaf7ed/image.png)

&#x20;

3. Insert the battery into the battery holder in the detector. Then remove it.
4. Repeat this step once more.

{% hint style="info" %}
!!!30 sec. pause between removing and inserting batery required!!!
{% endhint %}

![](https://t10544682.p.clickup-attachments.com/t10544682/a55bcd79-fefd-43d0-b640-4d427dea742b/image.png)

5. Press and hold after 5 seconds, the timer starts

![](https://t10544682.p.clickup-attachments.com/t10544682/7eb32b2e-2a5c-4626-a078-c31d4e6ed78f/image.png)

&#x20;

6. count the time for the required period

![](https://t10544682.p.clickup-attachments.com/t10544682/be5e158c-a106-4e5f-9675-631bc1b8d187/image.png)

&#x20;

7. Inserting the battery saves the set time

![](https://t10544682.p.clickup-attachments.com/t10544682/9763e4ee-a892-4689-b3fc-6acfc9ad45fc/image.png)

8. Short press of the PROG button for less than 1s to close pairing mode.

![](https://t10544682.p.clickup-attachments.com/t10544682/cccfa465-5232-4d1c-9da1-795824e88a8a/image.png)

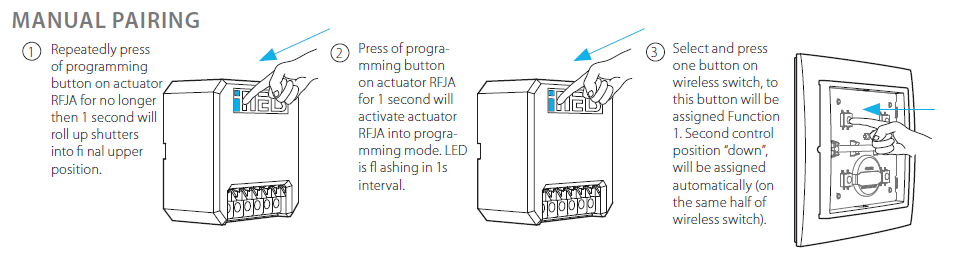

## &#x20;**Shutter Blinds Manual Pairing**

<figure><img src="https://t10544682.p.clickup-attachments.com/t10544682/fd9e4cad-8833-4872-b3a5-8a47952943d2/image.png" alt=""><figcaption></figcaption></figure>

![](https://t10544682.p.clickup-attachments.com/t10544682/10131aa7-36c6-4128-b276-f326decb06f7/image.png)
